NOS-4008

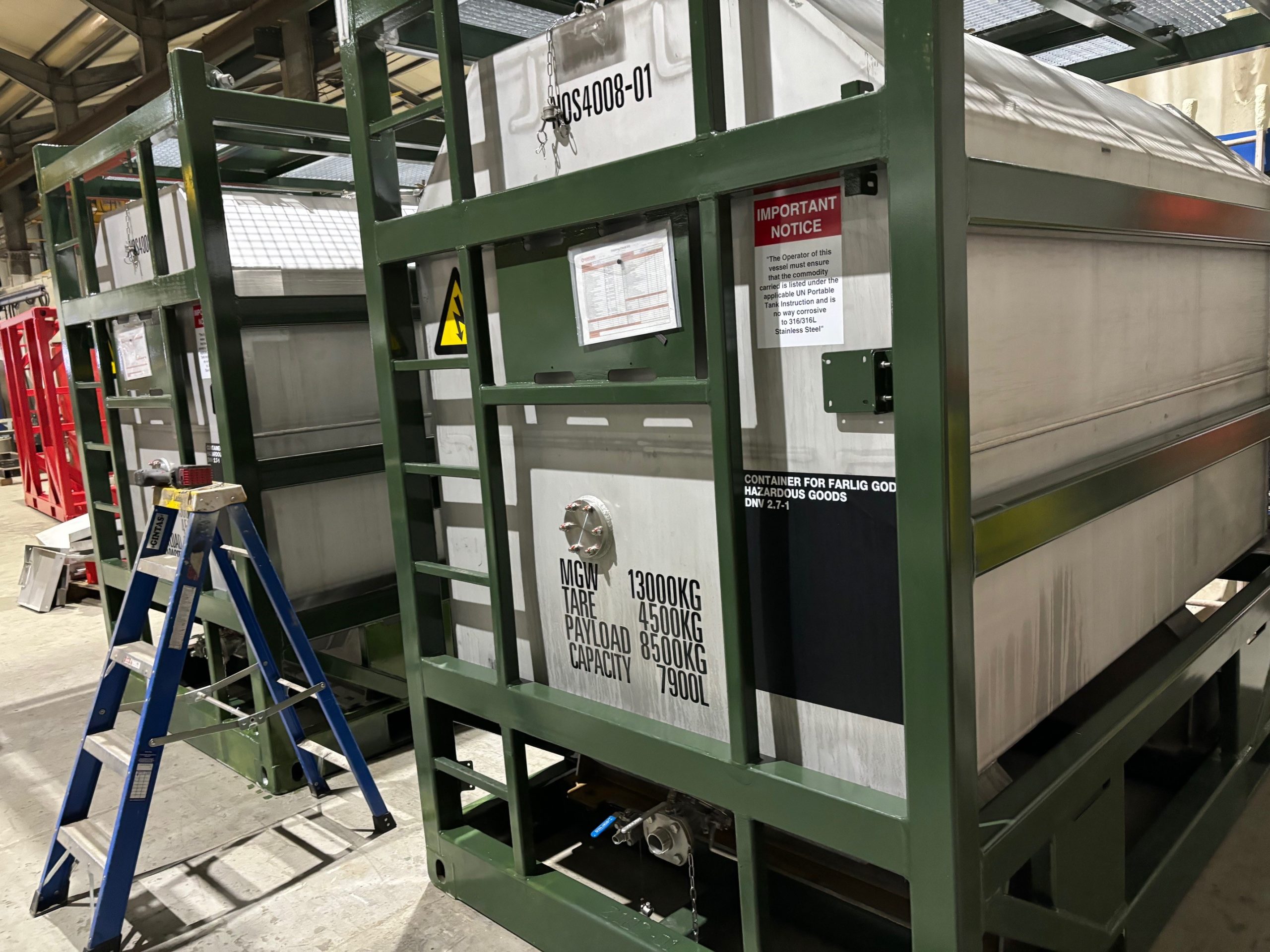

T7 Offshore transport tank
Description
Specialty IMDG T7 transport tank to reduce footprint and maximize volume.
Datablad
Press to Preview: NOS-4008
| Tank in Frame | |
| Approvals | IMDG T7 ADR Norsok Z-015, DNV 2.7-1 ISO 10855-1, IMO/MSC Circular 860 |
| Area Classification | EX II 2 G – Ex db eb ia mb IIC T4 Gb |
| Z-015 Type | U03 |
| Frame Envelope Size | 2990 x 1850 x 2865mm(LxWxH) |
| Weight | 4 500kg |
| Payload | 8 500kg |
| MGW | 13 000kg |
| Process Data | |
| Tank Volume | 7 900 liter |
| Tank Material | SS 316 |
| Working Pressure | 4 bar |
| PRV tank | 2bar |
| Level gauge | Vegapuls 21 |
| Power req. | 24v |
| Outlet | 2” BSPP M |
| Ambient Operating temperature | 0 – 60 °C
(below 0°C contact NOS) |
