NOS-M2-316
2″ Diaphragm Pump 316
Description
NOS ATEX Diaphragm pumps are a compact option for pumping a large amount of fluids & chemicals with a higher pressure than a standard PDA pump.
Datablad
Press to preview : NOS-M2-316

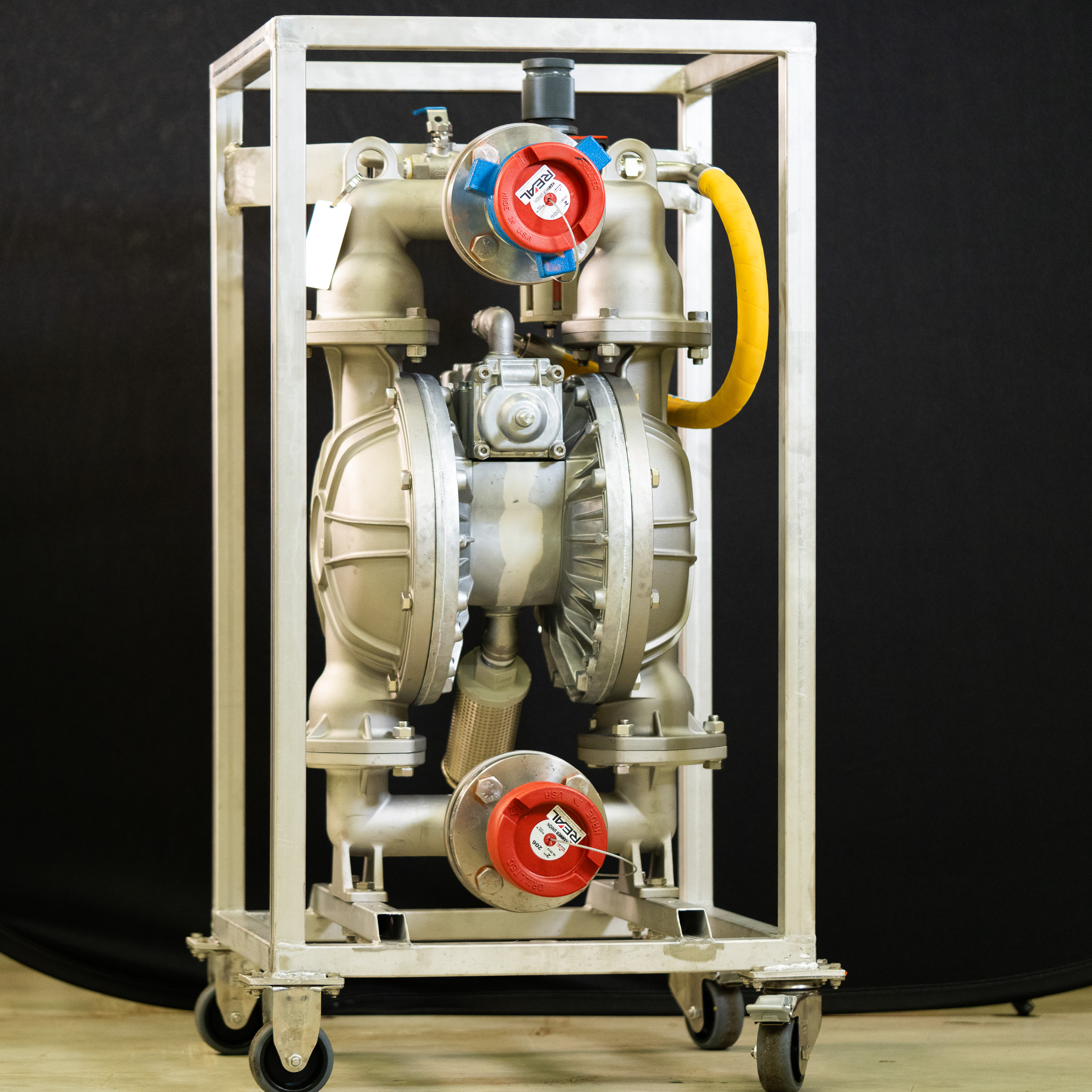

| C-Pump on Frame | |
| Approvals | Norsok Z-015, |
| Area Classification | II 2G Ex h IICT6 Zone 1 |
| Z-015 Type | U10 |
| Frame Envelope Size | 550x550x1045mm (LxWxH) |
| Weight | 60kg |
| Pump | Yamada NDP 50BST 1:1 |
| Membrane | PTFE or EPDM |
| Flow & pressure | |
| MWP / Head | 7 bar /70m |
| Max flow | 630 LPM |
| Supply connection | |
| Max ID of passing solid | 10mm |
| Outlet | 2” FIG 206 |
| Inlet | 2” FIG 206 |
| Air Supply | 1” Offshore Claw |
| Ambient Operating temperature | 0 – 60 °C
(below 0°C contact NOS) |
