NOS-Powerpack

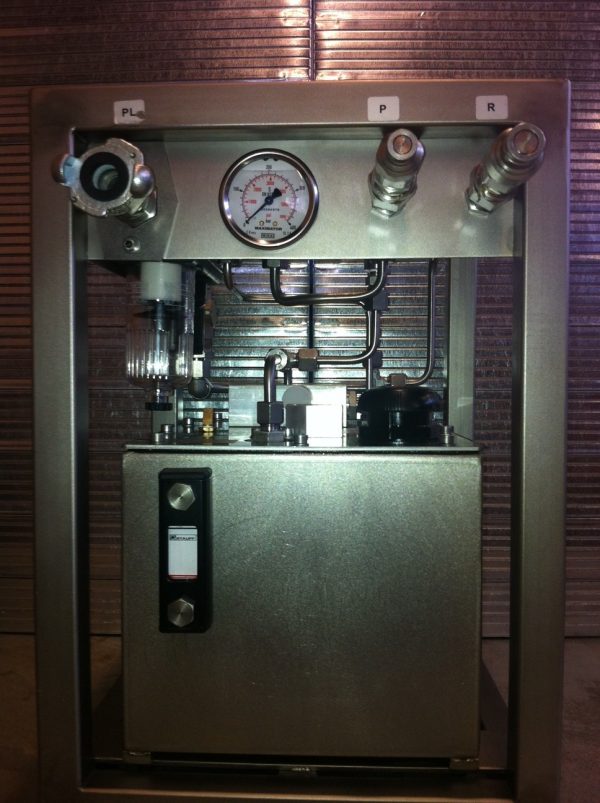

NOS HP6665 Powerpack & Control panel
Description
NOS Powerpack and control panel is a compact air driven powerpack to operations where control of hydraulic equipment Is needed. Power pack is made to be used together with NOS CT Tong
Datablad
Press to Preview PDF: NOS-Powerpack
| Powerpack | |
| Approvals | Norsok Z-015, |
| Area Classification | ATEX II 2G/2D IIC c T6 Zone 1 |
| Z-015 Type | U10 |
| Size Power pack | 360x360x500mm (LxWxH) |
| Weight | 40kg |
| Reservoir | 15L |
| Outlet pressure | 360 bar |
| Pumps, Flow & pressure | |
| Pump | Maximator S60D |
| Flow | 4,8 lpm |
| MWP | 360 bar |
| MAX Air pressure | 6 bar |
| Supply connection | |
| Outlet | ¼” ISO 16028 |
| Inlet / return | 3/8” ISO 16028 |
| Air Supply | 1” Offshore Claw |
| Ambient Operating temperature | 0 – 60 °C
(below 0°C contact NOS) |
