NOS-4005
T14 Vertical Acid Tank
Description
The large NOS Rentals T14 Lined Acid tank fleet.

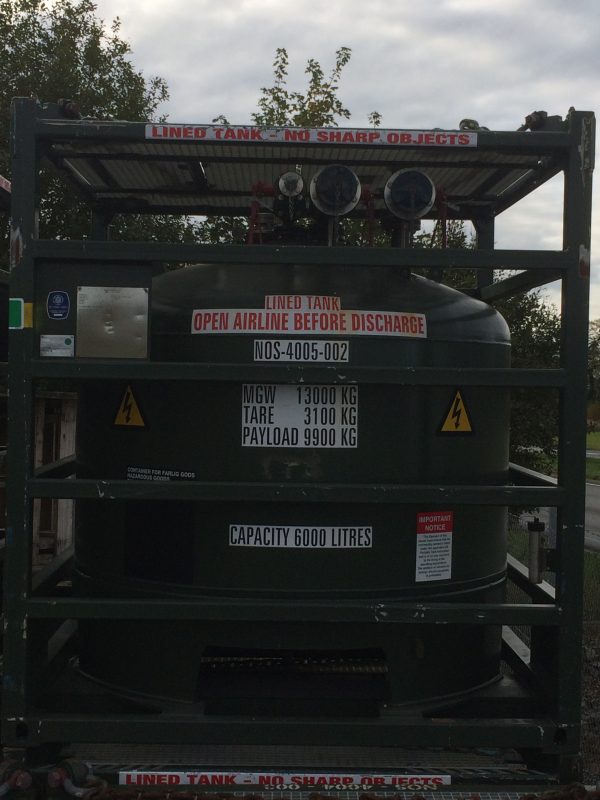

Vertical tank in frame with outlet on top and uses air to empty the tank
Datablad
Press to preview: NOS -4005
| Tank in Frame | |
| Approvals | IMDG T14, ADR, DNV 2.7-1, EN12079, ISO 1496,3, IMO MSC/Circ.860, NORSOK R003 |
| Vessel Design code | ASME VIII Div 1 |
| Cargo Carried | Multi cargo as per IMDG T14 and compatible with lining |
| Frame Envelope Size | 2438 x 2438 x 2750mm(LxWxH) |
| MAX Payload | 9 900kg |
| Tare | 3 100kg |
| MGW | 13 000kg |
| Process Data | |
| Tank Volume | 6000 liter |
| Vessel material | Carbon steel to SA514-70 Lined |
| M.W.P | 4 bar |
| PRV | 2 bar |
| Connection | |
| Outlet | 4” FIG 206 Thread |
| Inlet | 4” FIG 206 Thread |
| Air Supply | 1” Offshore Claw |
| Ambient Operating temperature | -40 – 60 °C
(outside spec. contact NOS) |
